Single Sonic Tanks and Plug and Play Systems

Echoflex Render-01_edited_edited_edited.

Upgrade your cleaning process with Echoflex modular ultrasonic cleaning machines, and experience the difference in efficiency, convenience and effectiveness.

  • Available as single wet-tanks with or without ultrasonics or as stand-alone dryer units.

  • Choose from multiple tank sizes, ultrasonic frequencies and a variety of additional options to best fit your needs.

  • Stainless steel construction with full dress-off, HMI and casters for added mobility.

  • Plug and play modules in various configurations to create custom, automated cleaning lines that perfectly match your unique cleaning requirements.

Echoflex Render 2- callouts-01_edited_ed
Echoflex Render 3 - callouts-01_edited_e

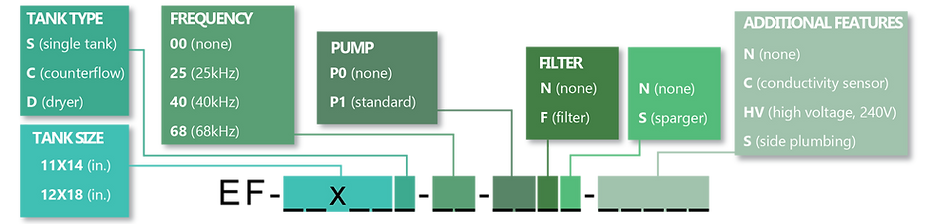

Spec your system:
Echoflex Part Number Chart-01_edited.png

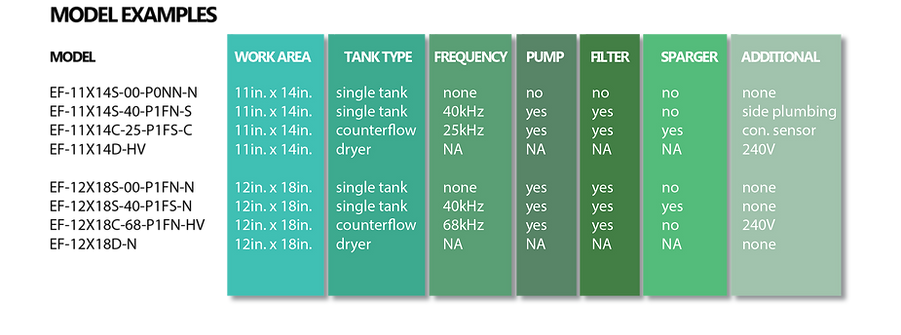

Exhoflex Part Number Examples-01.png
Benchtop Ultrasonic Tank
Benchtops

Heavy Duty Cleaning Tanks

  • 14 Gauge, 316 L Stainless Steel Double Wall Construction

  • Adjustable Thermostat with Power on Light

  • 6 Foot Coaxial Cable Connecting to Generator (longer cables up to 50 feet available)

  • Bottom Mounted Ultrasonic Transducers

  • Stainless Steel Drain Ball Valve

  • Custom Sizes Available

  • Can be mounted in countertop

  • One Year Warranty



Ultrasonic Generators

  • 40 kHz (optional 25, 68, 170 kHz)

  • 500, 1000 Watts 120 VAC 50/60 Hz (optional 208/240 Volt)

  • Capable of Continuous Operation

  • Power Intensity Control

  • 4 kHz Sweep Output with Adjustable Sweep Rate 300 to 1000 Hz

  • Protected from Shorts or Opens in Output

  • Optional HMI/PLC

  • Two Year Warranty

Ultrasonic Tank with Filter

Custom benchtop tank with filter loop and HMI

A Three-in-One System for Cleaning, Rinsing and Corrosion-Inhibiting Guns
